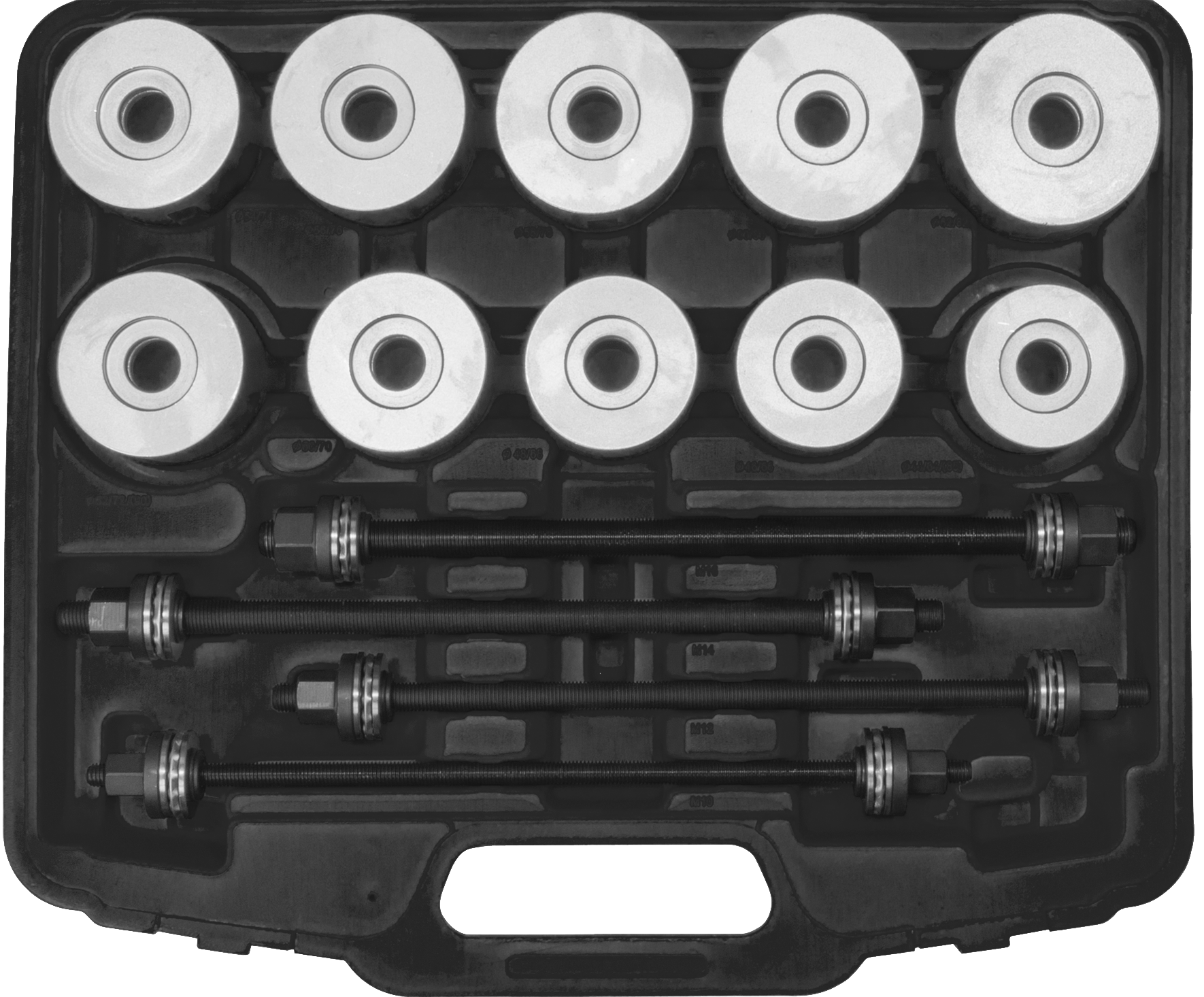

Bearing and bush removal/insertion set, 32-piece


Item no.: 10043L
EAN: 4033592138000

Information about the product

Description

for the removal and insertion of suspension bushes, ball bearings, wheel bearings, rubber bearings, etc. to passenger cars and commercial vehicles. Also to be used for radial sealing rings.

  • Slightly supported by industrial ball bearing on the spindle nut
  • Four spindles in 350 mm length, M10, M12, M14 and M16
  • Eight pressure nuts with bearing: M10, M12, M14, M16
  • 20 pressure pieces, slit for visual inspection
  • Can also be used with a workshop press or press frame

Dimensions of the sleeves:

Outer diameter / Inner diameter [mm], height inside - 50 mm:

  • 44/34 - 46/36 - 48/38 - 50/40 - 52/42 - 54/44 - 56/46 - 58/48 - 60/50 - 62/52
  • 64/54 - 66/56 - 68/58 - 70/60 - 72/62 - 74/64 - 76/66 - 78/68 - 80/70 - 82/72

Technical data

Number of tools 32
Quality Premium
Packaging Plastic Case
Length [mm] 440
Width [mm] 350
Height [mm] 90
Weight [kg] 14.05000

Scope of delivery

Item no. variant Name Quantity
10043L-1 - Spindle, M10, 350 mm 1
10043L-2 - Spindle, M12, 350 mm 1
10043L-3 - Spindle, M14, 350 mm 1
10043L-4 - Spindle, M16, 350 mm 1
10043L-5 - Pressure piece, sleeve with control groove, 44/34 mm 1
10043L-6 - Pressure piece, sleeve with control groove, 46/36 mm 1
10043L-7 - Pressure piece, sleeve with control groove, 48/38 mm 1
10043L-8 - Pressure piece, sleeve with control groove, 50/40 mm 1
10043L-9 - Pressure piece, sleeve with control groove, 52/42 mm 1
10043L-10 - Pressure piece, sleeve with control groove, 54/44 mm 1
10043L-11 - Pressure piece, sleeve with control groove, 56/46 mm 1
10043L-12 - Pressure piece, sleeve with control groove, 58/48 mm 1
10043L-13 - Pressure piece, sleeve with control groove, 60/50 mm 1
10043L-14 - Pressure piece, sleeve with control groove, 62/52 mm 1
10043L-15 - Pressure piece, sleeve with control groove, 64/54 mm 1
10043L-16 - Pressure piece, sleeve with control groove, 66/56 mm 1
10043L-17 - Pressure piece, sleeve with control groove, 68/58 mm 1
10043L-18 - Pressure piece, sleeve with control groove, 70/60 mm 1
10043L-19 - Pressure piece, sleeve with control groove, 72/62 mm 1
10043L-20 - Pressure piece, sleeve with control groove, 74/64 mm 1
10043L-21 - Pressure piece, sleeve with control groove, 76/66 mm 1
10043L-22 - Pressure piece, sleeve with control groove, 78/68 mm 1
10043L-23 - Pressure piece, sleeve with control groove, 80/70 mm 1
10043L-24 - Pressure piece, sleeve with control groove, 82/72 mm 1

Accessories

Item no. variant Name
10043L-M18 - Spindle, M18, 350 mm
