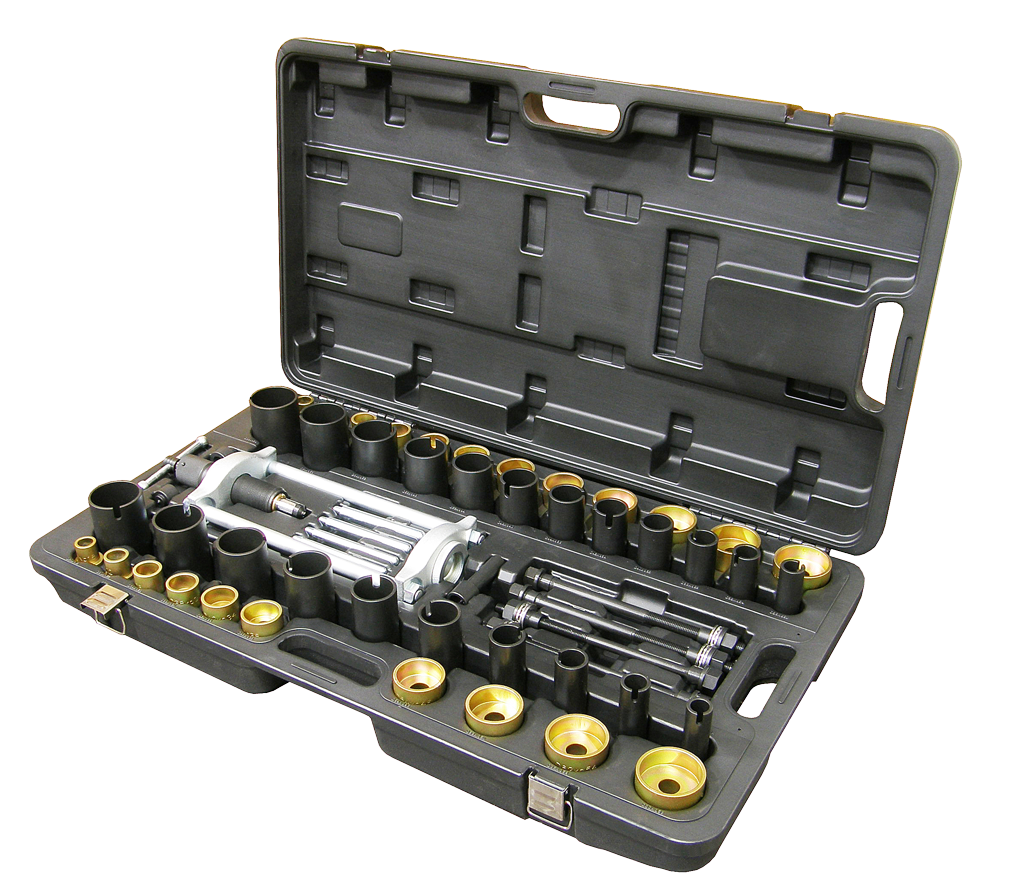

Complete set with 10 t hydraulic spindle and pressure piece.
For pressing out and pressing in suspension joints or silent bearings with a 10 t hydraulic spindle and four different spindles including nuts in M10, M12, M14, M16, each 250 mm long.
Also includes press frames and pressure pieces in various sizes. 44 pressure pieces 40 mm and 100 mm long with a diameter of (A/I) 26 x 18 mm to 68 x 60 mm.
| Number of tools | 56 | |
| Length [mm] | 91 | |
| Width [mm] | 20 | |
| Depth [mm] | 53 |
| Item no. | variant | Name | Quantity | |
|---|---|---|---|---|
|
302102L-1 | - | Hydraulic spindle | 1 |
|
302102L-2 | - | Press frame | 1 |
|
302102L-7 | - | Threaded sleeve | 1 |
|
302102L-8 | - | Threaded sleeve | 1 |
|
302102L-10 | - | Feed rod | 1 |
|
302102L-12 | - | Feed rod | 1 |
|
302102L-14 | - | Feed rod | 1 |
|
302102L-16 | - | Feed rod | 1 |
| Item no. | variant | Name | |
|---|---|---|---|
|
302101L | - | Pressure piece set |
