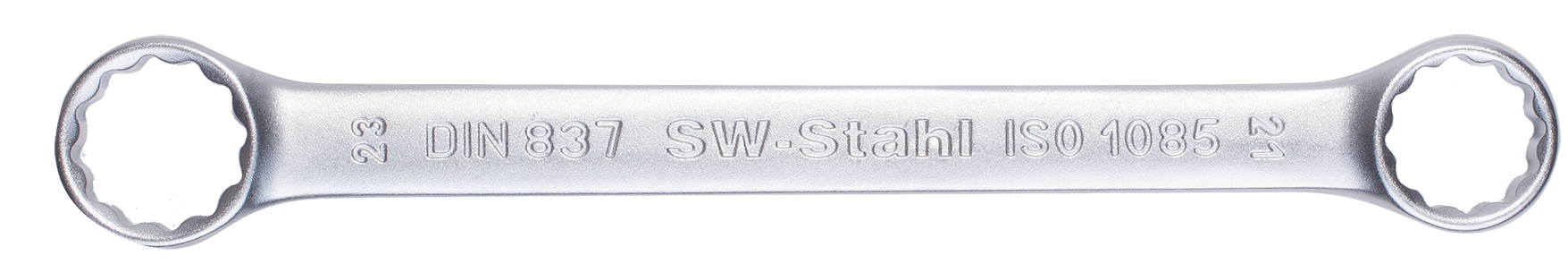

Double-ring spanner, 6 x 7 mm


Item no.: 01301L
EAN: 4033592001847


variant: L SB
L: Loose and SB: SB-packing

Information about the product

Description

Manufactured according to DIN 837 / ISO 1085

  • Straight version
  • The slim shape as well as narrow heads guarantee a minimal space requirement
  • With SW-Stahl PRO DRIVE profile
    • Specially recessed shaft profile that prevents slipping or twisting of the bolt
    • The enlarged contact surface ensures a secure torque transmission
    • The optimally distributed force transmission generates higher torques by up to 20%
    • Even screws outside the tolerances can be easily tightened and loosened
  • Galvanic coating for preventing corrosion
  • Made of high-quality chrome vanadium steel
  • Matt chrome-plated

Technical data

Specification PRO DRIVE
Material Chrome Vanadium Steel
Spanner Size 6
Spanner Size 7
Quality Premium
DIN / ISO DIN 837
DIN / ISO ISO 1085
Surface Matt, chrom-plated
Length [mm] 100
Width [mm] 10
Height [mm] 4
Weight [kg] 0.01300
